Grid Ceiling
Grid Ceiling Installation in Bangalore
Modular Armstrong grid systems for offices, clinics, retail, and education — fast to install, easy to access, the global standard for commercial ceilings.
60+ Grid Ceiling projects in Bangalore

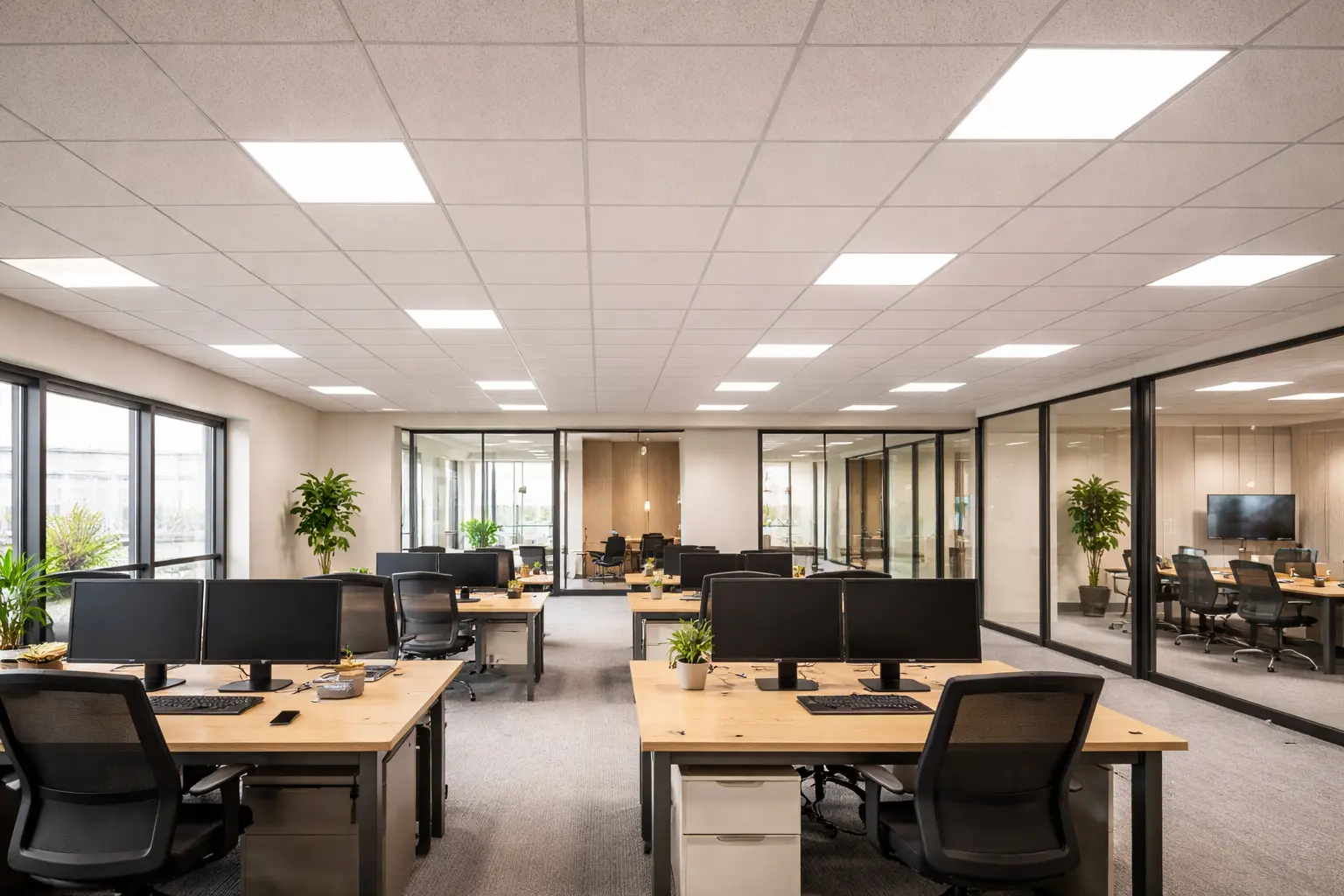

What is Grid Ceiling?
A grid ceiling is a T-section metal suspension system hung from the structural slab, into which factory-cut tiles drop from below. The grid is the skeleton: main runners running in one direction, cross-tees perpendicular to them, perimeter angles around the room. The tiles are the skin: mineral fibre, metal, or specialty acoustic boards in standard sizes (600 × 600 mm or 1200 × 600 mm) that lift out individually for access above.
The reason grid ceilings dominate commercial construction is the access problem. Modern offices, clinics, and retail spaces have ducts, sprinklers, wiring, and HVAC running above the ceiling that occasionally need maintenance. A gypsum ceiling has to be cut open and re-finished for any access; a grid ceiling has a tile lifted, the work done, and the tile dropped back in 60 seconds. Over the life of a building, that operational difference is enormous.
Grid ceilings install fast — a standard office floor on Armstrong tiles with T-grid suspension finishes in 4 to 8 working days. The tiles arrive pre-finished and don't need painting. The tile face options span plain mineral fibre, high-NRC acoustic boards, metal tiles for design-led commercial, and fire-rated boards for spec-driven projects. The system is mature, predictable, and the right answer for almost every commercial ceiling in Bangalore.
Why Choose Grid Ceiling?
-
Speed of installation
A 5,000 sq ft office floor on Armstrong tiles installs in 4 to 8 working days end to end. The grid system is engineered for site speed — perimeter angle, main runners, cross-tees, then tiles drop in.
-
Easy access to HVAC and wiring
Any tile lifts out individually in seconds, giving access to the ducts, sprinklers, and cable trays running above the ceiling. Over a building lifetime, the maintenance saving is significant.
-
Tile-by-tile replaceability
A damaged or water-stained tile can be replaced in a minute with a fresh tile from the same batch — no patching, no painting, no visible repair line. Order a small stock at project handover and the building has 10 years of self-serve replacement capacity.
-
Acoustic options
Standard mineral fibre tiles already absorb noise; specifying a high-NRC variant (Saint-Gobain Ecophon, Armstrong Optima) lifts speech privacy in open-plan offices significantly. The grid system makes acoustic upgrades a tile-swap rather than a ceiling rebuild.
-
Fire-rated options
For projects requiring fire-rated ceiling compartments (server rooms, exit routes, spec-driven commercial), fire-rated grid tiles are available in the same standard format. The rating documentation supports building compliance reviews.
-
Standard tile sizes simplify everything
The 600 × 600 mm and 1200 × 600 mm formats are international standards. Light fittings, HVAC diffusers, sprinkler grids, and ceiling speakers all come pre-engineered for these formats — installation coordination is straightforward and substitution risk is low.
How We Install Grid Ceiling
-
Layout planning
A specialist visits, measures the space, walks the duct and service runs above the slab, and lays out the grid plan — tile orientation, light fitting positions, HVAC diffuser locations, sprinkler integration. Confirmed with you before any fixing begins.
-
Perimeter angle fixing
The L-angle that runs around the room edge is screw-fixed to the walls at the agreed ceiling height. This is the level reference for everything that follows — laser-checked before the next step.
-
Main runner suspension
Main T-runners are suspended from the slab on adjustable hangers, levelled into the perimeter angle, and locked. Hanger spacing is set by the tile size and any localised loads (heavy fittings, ducts piercing the ceiling plane).
-
Cross tee installation
Cross-tees clip perpendicular to the main runners at standard spacings, completing the grid pattern. The cells are now sized for the chosen tile dimensions, and the grid is squared off corner to corner.
-
Tile placement and finishing
Tiles drop into the grid cells from below. Light fittings, HVAC diffusers, and any service penetrations are integrated using cut-tiles or pre-modified tiles. A final walkthrough confirms flatness, tile alignment, and edge fit before handover.
Materials We Use
-
Armstrong
The global standard for grid ceilings. Mineral fibre and metal tiles dominate office, education, and healthcare ceilings worldwide. Armstrong tiles carry visible brand markings on every face, so substitution risk is low — what gets specified is what arrives at site.
We use it for Standard commercial, office, education, healthcare
-
USG Boral
Joint venture between US Gypsum and Boral, with manufacturing in India. Their grid tiles are specified on high-spec commercial projects where dimensional tolerance and tile flatness matter for long sightline rooms. Strong fire-rated and humidity-resistant lines.
We use it for High-spec commercial, fire-rated zones, humidity-tolerant ceilings
-
Saint-Gobain Ecophon
Ecophon is Saint-Gobain's acoustic ceiling tile line — engineered specifically for sound absorption in open-plan offices, restaurants, and education. NRC ratings 0.85 to 1.00 with smooth white finish. Specified anywhere speech privacy and ambient noise control matter.
We use it for Open-plan offices, restaurants, schools, healthcare consultation rooms
The tile is half the story; the grid is the other half. A premium acoustic tile on an unbranded suspension system sags, twists, and shows misalignment at every cross-join. Brand discipline on both — tile and grid — is what makes a commercial ceiling read clean from 20 metres away.
Ideal For
Rooms
- Open-plan office floors
- Conference rooms and meeting spaces
- Reception and lobby areas
- Consultation rooms and clinics
- Retail showrooms and back-of-house
Property types
- IT and corporate offices
- Co-working spaces
- Clinics and small hospitals
- Retail and showroom buildings
- Schools and educational institutions
Grid ceiling is the right answer for any commercial space where service access above the ceiling matters and where tile-level replaceability adds value over a building lifetime. For residential ceilings, gypsum is usually the better choice — the grid pattern reads as commercial in a home context.
Frequently Asked Questions About Grid Ceiling
Mineral fibre vs metal grid tiles — when does each make sense?
Mineral fibre is the default — lighter, more cost-effective, excellent acoustic absorption, suits 90% of office and commercial ceilings. Metal tiles (powder-coated aluminium or steel) suit premium commercial: reception areas with long sightlines, design-led offices, hospital corridors, premium retail. Metal lasts longer, looks sharper at edges, and accepts perforation for combined acoustic and visual treatment. Mineral fibre for most floors; metal where the ceiling is part of the design statement.
Can grid tiles be replaced individually if one gets damaged or stained?
Yes, in about 60 seconds. Lift the damaged tile out of its grid cell, drop a replacement tile in from your maintenance stock, and the ceiling is whole again — no patching, no painting, no visible joint. Order 5–10% extra tiles at project handover and the building has a self-serve replacement capacity for the next decade. Match-batch matters: tiles from different production batches can have subtle colour drift, so we recommend pulling the spare stock from the same delivery.
What acoustic rating (NRC) should I specify for an open-plan office?
NRC measures noise reduction coefficient on a 0–1 scale; higher is more absorption. For typical open-plan offices, NRC 0.55–0.70 (standard mineral fibre tiles like Armstrong Cortega) is adequate. For dense seating, call centres, or any room where speech privacy is critical, specify NRC 0.85+ — Saint-Gobain Ecophon Focus, Armstrong Ultima OP. The acoustic upgrade is a tile-swap, not a ceiling rebuild, so it's a reversible decision if the room use changes later.
How do I access the services running above a grid ceiling — wiring, ducts, sprinklers?
Lift any tile within reach, do the work above the ceiling, drop the tile back. No tools required for the tile itself; the grid stays in place. Cable trays, sprinkler heads, fire detector positions, and HVAC diffusers are all installed with this access pattern in mind. Heavier maintenance (replacing a duct section, rerouting cabling) lifts a 1–2 metre zone of tiles, completes the work, and re-tiles in under an hour. Compare to a gypsum ceiling, where the same access is a multi-day cut-and-finish operation.
Is grid ceiling worth doing in a residential apartment or villa?
Rarely. The grid pattern reads as commercial — even with premium tiles, a residential room with a grid ceiling looks like an office. The case for residential grid is narrow: large home theatres or media rooms where the acoustic performance and service-access advantages outweigh the visual register. For all standard residential ceilings, gypsum is the better choice. See our gypsum false ceiling page for residential alternatives.
Get a Free Quote for Grid Ceiling in Bangalore
Tell us about your space — we'll send a written, itemised quote after a free site visit.
